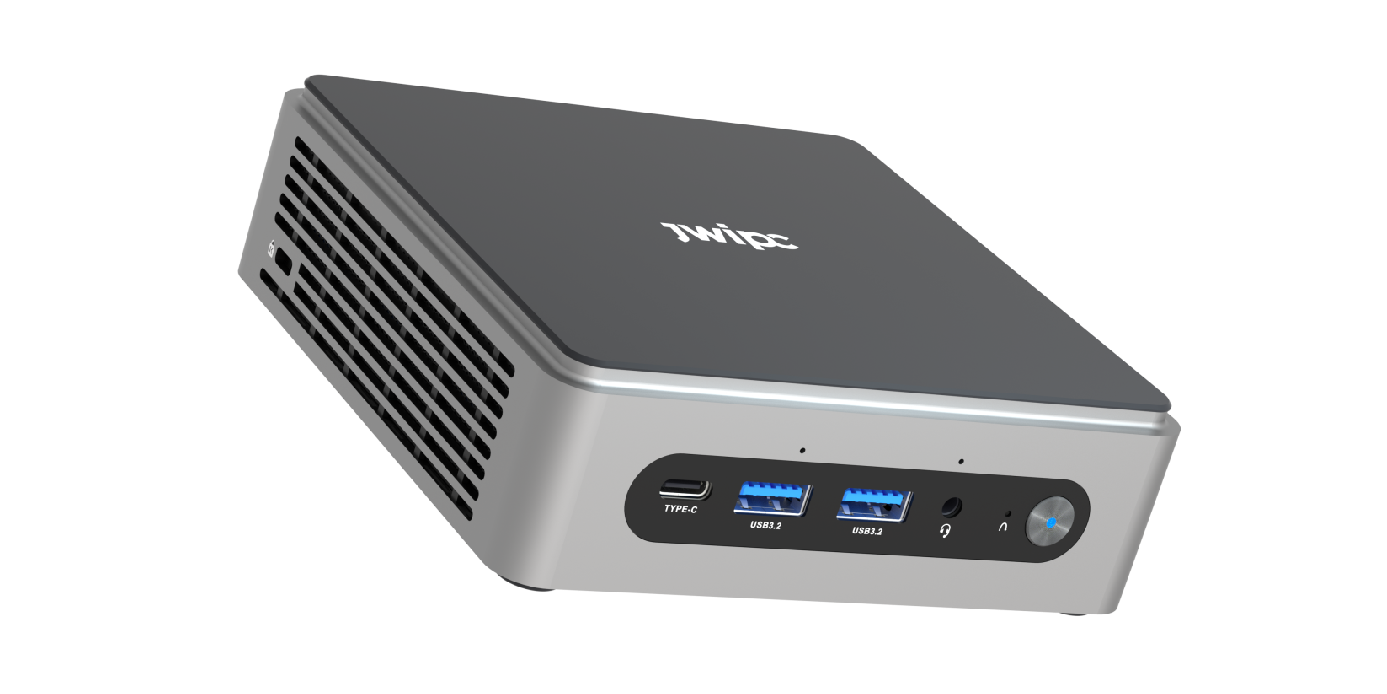

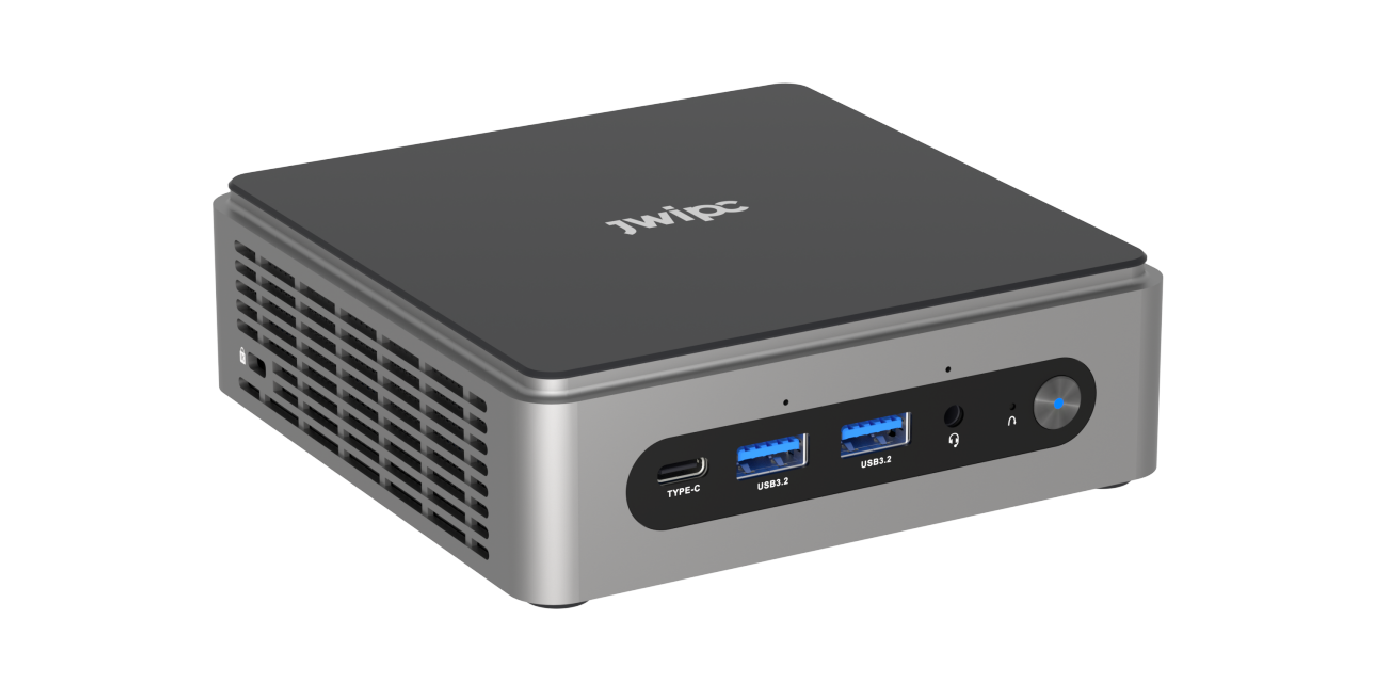

N114

高性能迷你PC電腦

采用 Intel Raptor Lake-P處理器，具備豐富的外部接口，廣泛應用于高效辦公，教育，政務等。

?: 基于Intel Raptor Lake-P平臺處理器 2 x SO-DIMM DDR4 Max 64GB 1 x M.2 Key M 2280 for NVME/SATA SSD 1 x M.2 2230 Key E With PCIe,USB2.0 and CNVi 2 x Gigabit Lan (2.5Gbps可選) 2 x USB3.2 (10Gbps)，2 x USB2.0，2 x TYPE-C (USB3.2 Gen2) 顯示：2 x HDMI，2 x DP1.4 （From TYPE-C）

留言咨詢業務咨詢

規格參數

CPU	CPU	Intel? 13th Gen (Raptor Lake P ) Core? Processors
CPU	TDP	Up to 28W
Display	Graphic card	Intel? Iris Xe Graphics for I7/I5 CPU Intel? UHD Graphics for i3/Celeron CPU
	Multi displays	Support 4 Displays

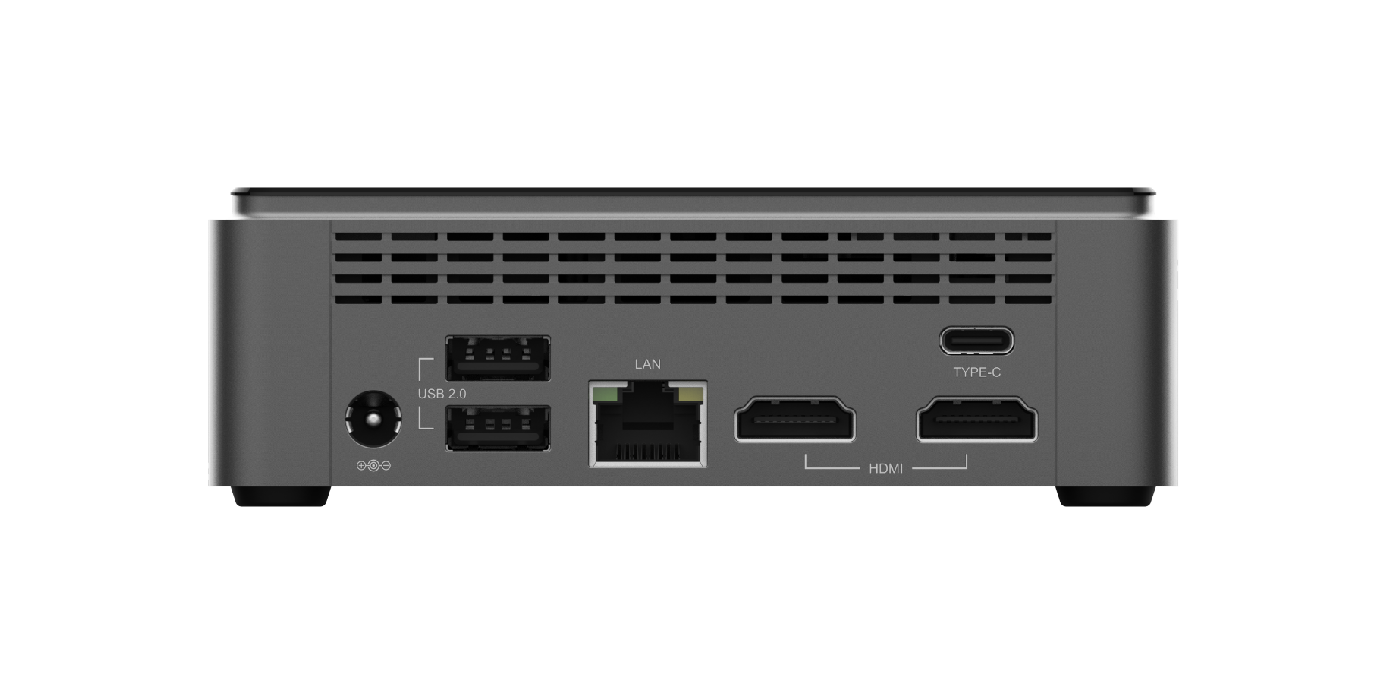

	Interface	2 x HDMI-Out, 2 x DP (from TYPE-C)
Network	Lan IC	1 x Realtek Lan IC
	Lan Interface	2.5Gbps
	Lan Connector	2 x RJ45 Ports
	Wireless Type	WIFI6
	Wireless Interface	M.2 2230 Key E With PCIe,USB2.0 and CNVi
	4G/5G	N/A
I/O interface	Serial Port	N/A

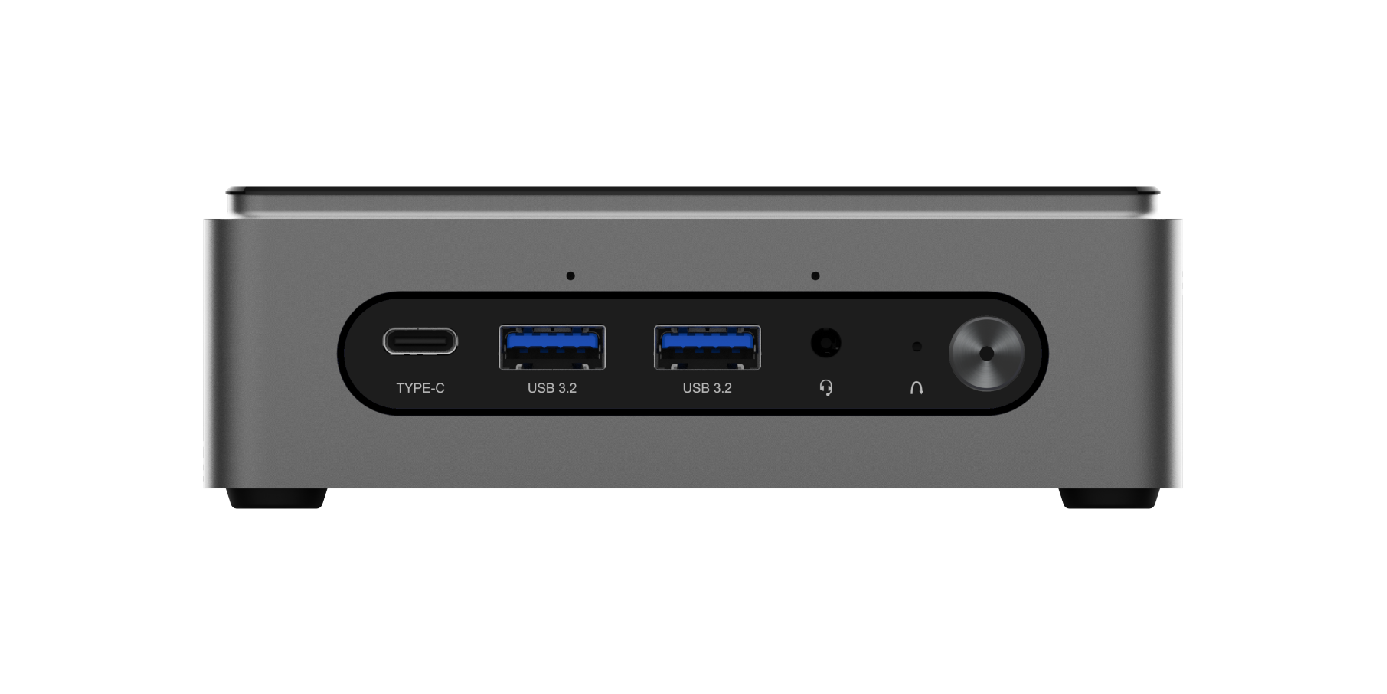

	USB	2 x USB3.2（Gen2），2 x USB2.0， 2 x TYPE-C (USB3.2 Gen2)
	Button	1 x PowerButton, 1 x Clear CMOS Key
	SIM CARD	N/A
	AUDIO	1 x 3.5mm Audio Jack (2 In 1)
	POWER	1 x 2.5/5.5 DC-IN Connector
System	Memory	2 x SODIMM DDR4 3200Mhz，Max 64GB
	Storage	1 x M.2 Key M 2280 for NVME/SATA SSD
	OS	Windows 11/Linux
	WatchDog	Support
	Auto Power On	Support
	RTC	Power on at specific time everyday
	Power Input	19v DC-In (2.5/5.5 DC Jack)
	Dimension	120mm(L) x 120mm(W) x 37mm(H)
	Operating Temp.	0~40℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
